Description
[Zippair Riveter Comparison Chart]
FEATURES
- Built with patented Module units assembled in composite clamshell housing for the ease of tool service.
- Patented Broken mandrel vacuum collection system? for the cleanliness and safety of work area.
- Easy adjustable Head & Nut designed for obtaining the most effective stroke.
- Ergonomic texture coated composite housing for operator’s comfort.
- Swivel air inlet design for maneuverability works.

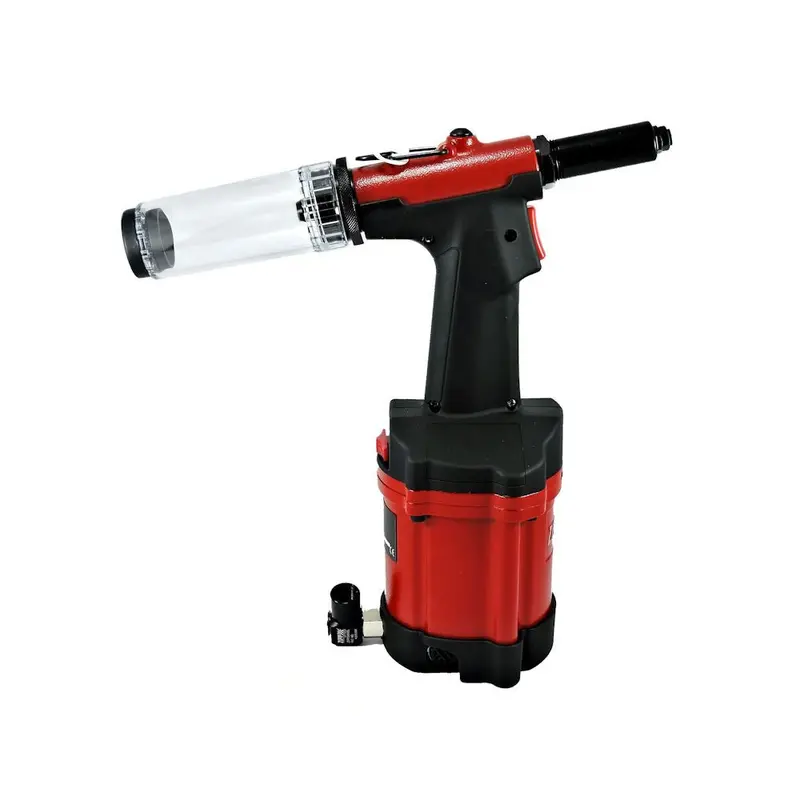

The Zipp Air ZT0520 features the clamshell design for easier user service and repair. The ZT0520 has a heat treated hydraulic section for long life operation. ZT0520 is capable of pulling all materials up to 5/32″ thick (4.0mm). When choosing the right riveter for your application, refer to the blind rivet specification.
SPECIFICATIONS
|
Brand Name |
Zipp Air Tool USA | Zipp Air Tool USA | Zipp Air Tool USA |
| Item model number | ZT0520 | ZT0922 | ZT1725 |
| Traction Power | 1100lbf(500kgf) | 2000lbf(920kgf) | 3700lbf(1700kgf) |
| Stroke Length | 20mm | 22mm | 25mm |
| Operating Air Pressure | 90psi(6.2bar) | 90psi(6.2bar) | 90psi(6.2bar) |
| Net Weight | 3.8lbs(1.7kgs) | 4.2lbs(1.9kgs) | 5.6lbs(2.5kgs) |
| Air Inlet Size | |||
| Min. Hose size | |||
| Nosepieces Equipped |
3/32″ (2.4mm) 1/8″ (3.2mm) 5/32″ (4.0mm) |
5/32″ (4.0mm) 3/16″ (4.8mm) |
3/16″ (4.8mm) 1/4″ (6.4mm) |
[Back To Top]
Downloads and Videos
[ZT0520 Parts Schematic]
[ZT0922 Parts Schematic]
[ZT1725 Parts Schematic]
