Description

[Zippair Rivet Nut Tool Comparison Chart]

FEATURES

• Composite Clamshell Housing.
• Ships in molded storage case w/ kitted accessories.
• Designed with patented Module units assembled in composite clam shell housing for easy tool service.
• Less friction loss along the air passage to increase tool power & performance.
• Module unit mechanism enables more common parts to be used in similar designed tools.
• Rocker type trigger and both left or right-hand side air inlet for ease of operational control.

SPECIFICATIONS

Brand Name	Zipp Tool USA
Model Number	ZRN1606M
Traction Power	3500lbf
Stroke Length	6mm
Net Weight	4.9 lb
Setting Capacity	M4 – M12 Rivet Nut Steel

Zipp makes the grade.

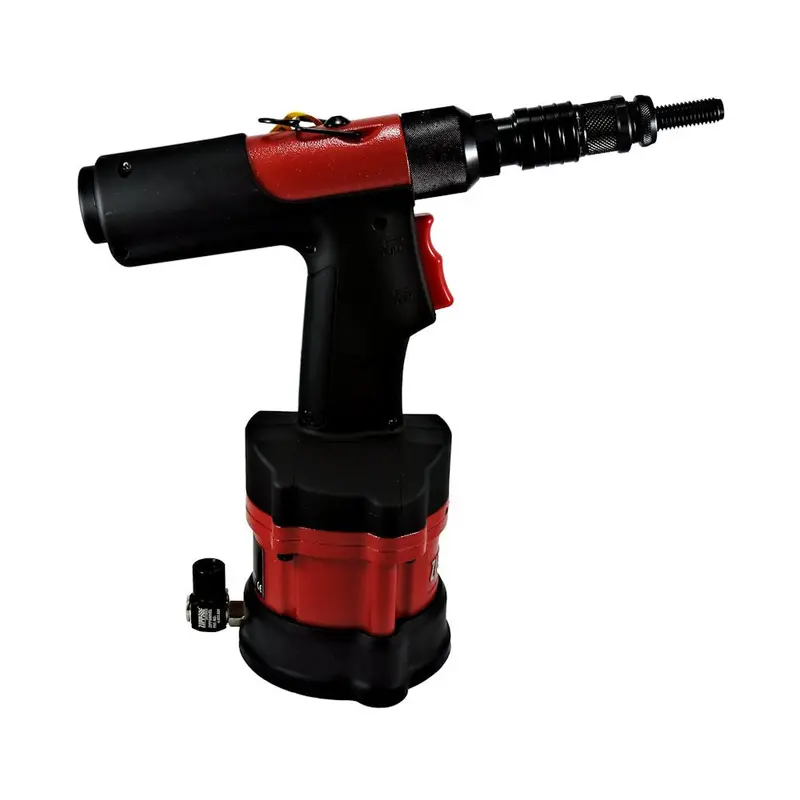

The Zipp Rivet Nut tool ZRN1606M features a SPIN-PULL-SPIN setting sequence. In one touch the fastener quickly spins on, pulls the fastener, and with the release button, spins out of the fastener. This means less thread deformation. The Zipp Rivet Nut tool has a fully adjustable stroke for accurate insert placements, which requires less operator skill. Stroke adjustment is quick and easy and is done from the exterior of the tool. The Zipp line of Rivet Nut tools covers sizes M4 – M12.

Downloads and Videos

[ZRN1606E Parts Schematic]
