Description
[Zipp Air Impact Comparison Chart]
FEATURES
- Adjustable 3 stages speed for Forward/Reverse
- Use for heavy automotive and truck repair, construction or assembly line.
- Durable twin hammer design has more torque with less vibration.
- Excellent power-to-weight ratio.
- A 3/4″ IMPACT IN A 1/2″ IMPACT HOUSING. UNBEATABLE POWER TO SIZE RATIO
SPECIFICATIONS
| Brand Name | Zipp Air Tool USA |

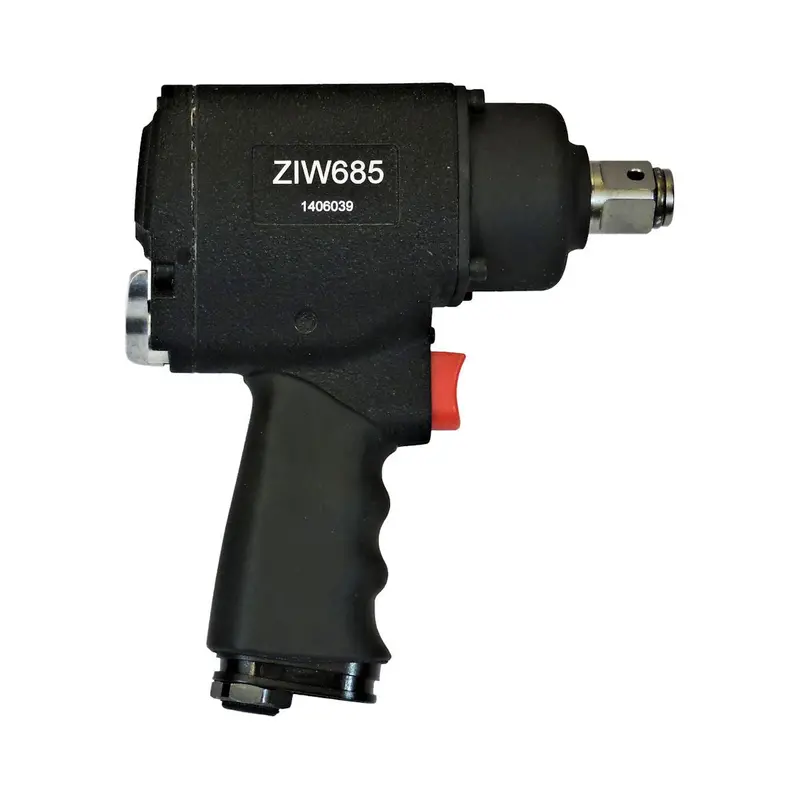

| Item model number | ZIW685 |
| Square Drive | 3/4″ (19mm) |
| Std. Bolt Size | 1-9/64″ (29mm) |
| Free Speed | 7,500 rpm |
| Max. Torque (10 Sec) | 850ft-lb (1,492nm) |
| Operating Air Pressure | 90psi (6.2bar) |
| Avg. Air Consumption | 7.42cfm (210 l/min) |
| Net Weight | 6.78lb (3.08kgs) |
| Air Inlet Size | 1/4″ NPT/PT |
| Min. Hose size | 3/8″ (10mm) |
[Back To Top]
Downloads and Videos
[ZIW685(L) Parts Schematic]
